Unit Load Devices
A Unit Load Device (ULD) is used to transport cargo by aeroplane. ULDs can convey any type of cargo, from passenger suitcases and perishable goods to animals and cars. ULDs are divided into two main categories: aircraft containers and aircraft pallet/net combinations.

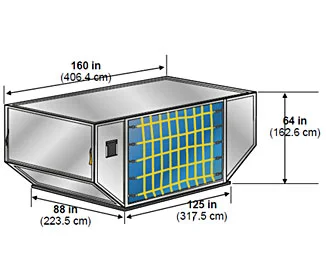

LD-26 AAF
Compatible Airplanes: Boeing 747/777 – DC10.
Volume: 425 cy. ft. (13 cu. m.)
Weight of the package: 286 Kg.
Maximum gross weight: 747 / DC10: 6033 Kg.
777 / DC10: 4626 Kg.
Dimensions: 160” x 66” x 125” x 88”.

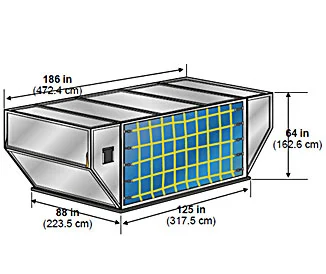

LD-29 AAU
Compatible Airplanes: Boeing 747
Volume: 485 cy. ft. (14.8 cu. m.)
Weight of the package: 265 Kg.
Maximum gross weight: 4626 Kg.
Dimensions: 186” x 29” x 62” x 125” x 88”

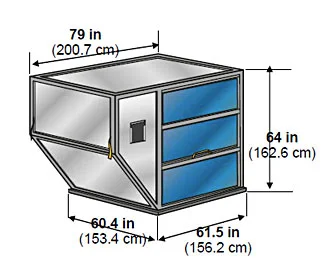

LD-3 AKE
Compatible Airplanes: Boeing 747 / 767 / 777 / DC10
Volume: 150 cy. ft. (4.2 cu. m.)
Weight of the package: 72 Kg.
Maximum gross weight: 1588 Kg.
Dimensions: 79” x 43” x 64” x 61.5” x 60.5”
LD-6 ALF
Compatible Airplanes: Boing 747 / 777 / DC10.
Volume: 310 cy. ft. (8.8 cu. m.)
Weight of the package: 172 Kg.
Maximum gross weight: 747 / DC10: 317 Kg.
Dimensions: 41” x 160” x 46” x 125” x 64”
LD-29 AAU
Compatible Airplanes: Airbus A320
Volume: 120 cy. ft. (3.4 cu. m.)
Weight of the package: 76 Kg.
Maximum gross weight: 1134 Kg.
Dimensions: 26.4” x 96” x 46” x 61.5” x 60.4”

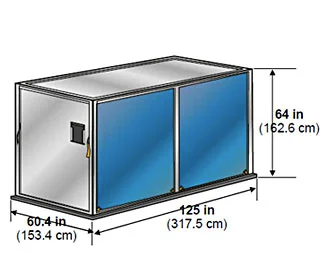

LD-11 ALP
Compatible Airplanes: Boeing 747 / 777 / DC10
Volume: ALP 240 cu. ft (6.8 cu.m) / PLA 245 cu. ft (7.0 cu. m)
Weight of the package: ALP 185 Kg. / PLA 73 Kg.
Maximum gross weight: 3176 Kg.
Dimensions: 60.4” x 64” x 125”

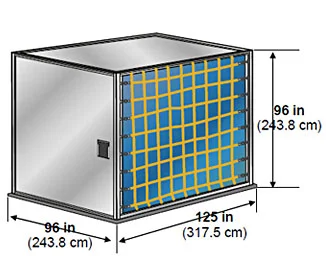

M-1 AMA
Volume: 580 cy. ft. (16.4 cu. m.)
Weight of the package: 350 Kg.
Maximum gross weight: 6804 Kg.
Dimensions: 96” x 96” x 125”
LD-29 AAU
Compatible Airplanes: Boeing 767
Volume: 120 cy. ft. (3.5 cu. m.)
Weight of the package: 70 Kg.
Maximum gross weight: 1225 Kg.
Dimensions: 45” x 61.5” x 64” x 47” x 60.4”

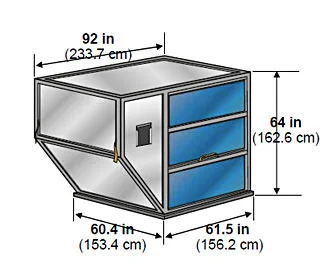

LD-1 AKC
Compatible Airplanes: Boeing 747 / 767
Volume: 170 cy. ft. (4.8 cu. m.)
Weight of the package: 85 Kg.
Maximum gross weight: 1588 Kg.
Dimensions: 92” x 30” x 64” x 61.5” x 60.4”
LD-9 AAP
Compatible Airplanes: Boeing 747 / 777 / DC10
Volume: 350 cy. ft. (10 cu. m.)
Weight of the package: 85 Kg.
Maximum gross weight: 1588 Kg.
Dimensions: 92” x 30” x 64” x 61.5” x 60.4”
LD-1 AKC
Compatible Airplanes: Boeing 747 / 767
Volume: 170 cy. ft. (4.8 cu. m.)
Weight of the package: 85 Kg.
Maximum gross weight: 1588 Kg.
Dimensions: 92” x 30” x 64” x 61.5” x 60.4”
LD-9 AAP
